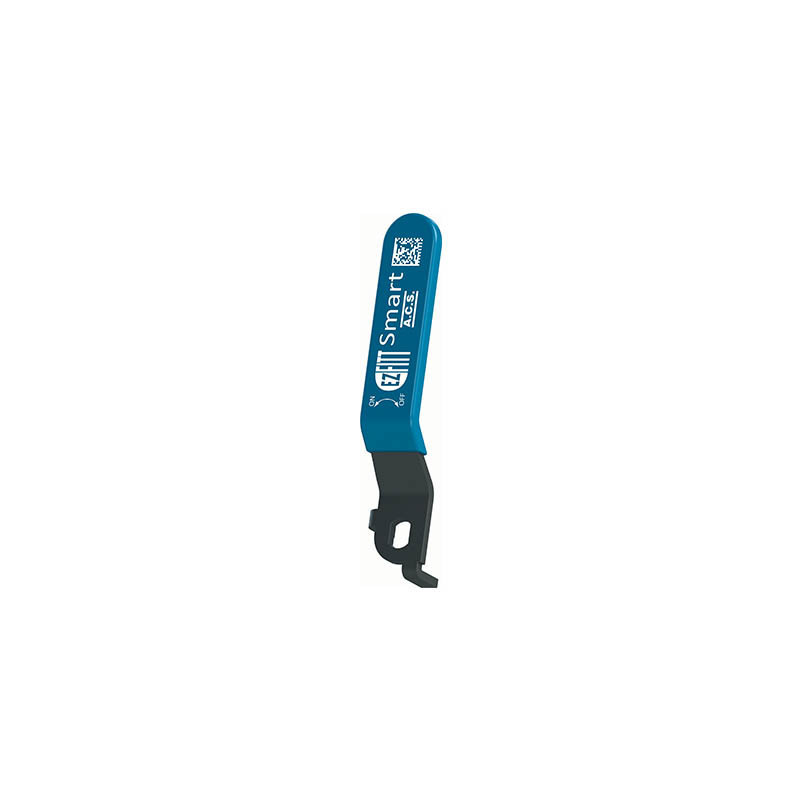

Smart blue flat handle, anti-corrosion plated steel
Ref. 803
Flat handle with blue PVC
in black zinc-aluminium coated steel
+ bolt.
br />Adaptable for ref. 120, 121, 122, 123, 124, 125, 126, and 130.
See the POS marketing kit SMART
Change color
| Ø | ØA | B | S | T | Lg |
|---|---|---|---|---|---|
| 3/8" | Ø8 | 6 | 2 | 2.3 | 77 |
| 1/2” - 3/4” | Ø8 | 6 | 2 | 2.5 | 85 |
| 1" | Ø10 | 6 | 2 | 2.5 | 104 |
| 1”1/4 - 1”1/2 | Ø12 | 8 | 3 | 3 | 130 |
| 2" | Ø14 | 10 | 3.5 | 3.5 | 156 |
| 2"1/2 | |||||
| 3" - 4" |
