Female/Female ball valve, red flat handle

Ref. 120

- Forged brass ball valve, nickel plated on outer surface.
- Designed, manufactured and controlled according to European standard EN 13828.
- Standard bore.
- Tightness with 2 EPDM O'rings.
- Anti blow-out stem.
- BSPP female threaded ends according to ISO 228-1 standard.
- Flat bearing area to make tightness with flat gasket.
- Reversible handle with operating direction ON/OFF.
- Data matrix code on handle and label (to access technical sheet from a smartphone).
- Marking and traceability (manufacturing date, PN, size, ACS, EZFITT Smart).
- Tightness 100% tested.
- Temperature : -10°C/+120°C

Certification :

- WRAS

ILV See the POS marketing kit SMART
  • ACS
  • 4MS
Change handle
See all configurations
Ø Code SU Sachet Carton Qty
3/8" 19201 24 24 192
1/2" 19202 22 22 176
3/4" 19203 16 16 128
1" 19204 10 10 80
1"1/4 19205 1 52
1"1/2 19206 1 36
2" 19207 1 22
2"1/2 19208 1 12
3" 19209 1 6
4" 19210 1 4
Créer
Female/Female ball valve, red flat handle

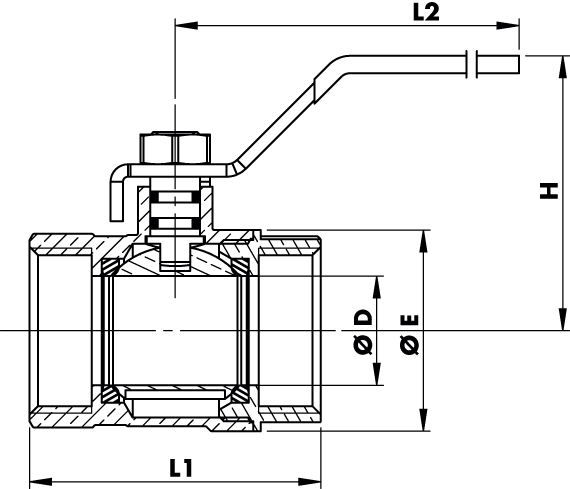

Ø Kg PN ØD ØE L1 L2 H
3/8" 0.1 32 10 23 37.5 77 40
1/2" 0.133 32 13.5 27 42 85 43
3/4" 0.184 32 18 33 48 85 46
1" 0.302 32 22 40 59 104 55
1"1/4 0.465 25 28 49.5 66 130 69
1"1/2 0.673 25 35 60.5 80 130 75
2" 1.058 25 45 75.5 94 156 85
2"1/2 2.001 16 58 97.5 115 184 106
3" 3.05 16 69 115 132 238 132
4" 4.863 16 88 144.5 162 238 147
