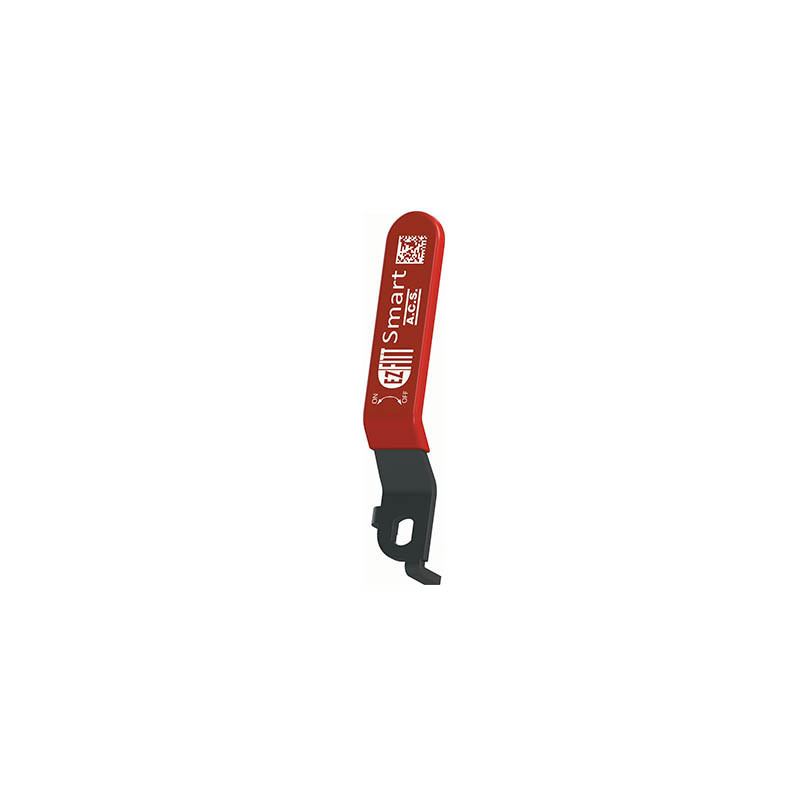

Smart red flat handle, anti-corrosion plated steel
Ref. 801
Flat handle with red PVC
in black zinc-aluminium coated steel
+ bolt.
Adaptable for ref. 120, 121, 122, 123, 124, 125, 126, and 130.
See the POS marketing kit SMART
Change color
| Ø | ØA | B | S | T | Lg |
|---|---|---|---|---|---|
| 3/8" | Ø8 | 6 | 2 | 2.3 | 77 |
| 1/2” - 3/4” | Ø8 | 6 | 2 | 2.5 | 85 |
| 1" | Ø10 | 6 | 2 | 2.5 | 104 |
| 1”1/4 - 1”1/2 | Ø12 | 8 | 3 | 3 | 130 |
| 2" | Ø14 | 10 | 3.5 | 3.5 | 156 |
| 2"1/2 | |||||
| 3" - 4" |
Downloadable documents
| Name | Type | Size | |
|---|---|---|---|
| Technical sheet - Smart - Vanne en laiton nickelé femelle/femelle, poignée plate rouge - Ref : 120, 120 PB, 123, 126, 121, 121 PB, 124, 122, 122 PB, 125, 130, 801, 803, 912, 807, 914 | 3.05 Mo | Download | |
| Assembling instructions | 0.11 Mo | Download |
Technical sheet - Smart - Vanne en laiton nickelé femelle/femelle, poignée plate rouge - Ref : 120, 120 PB, 123, 126, 121, 121 PB, 124, 122, 122 PB, 125, 130, 801, 803, 912, 807, 914
3.05 Mo pdf
Assembling instructions
0.11 Mo pdf
