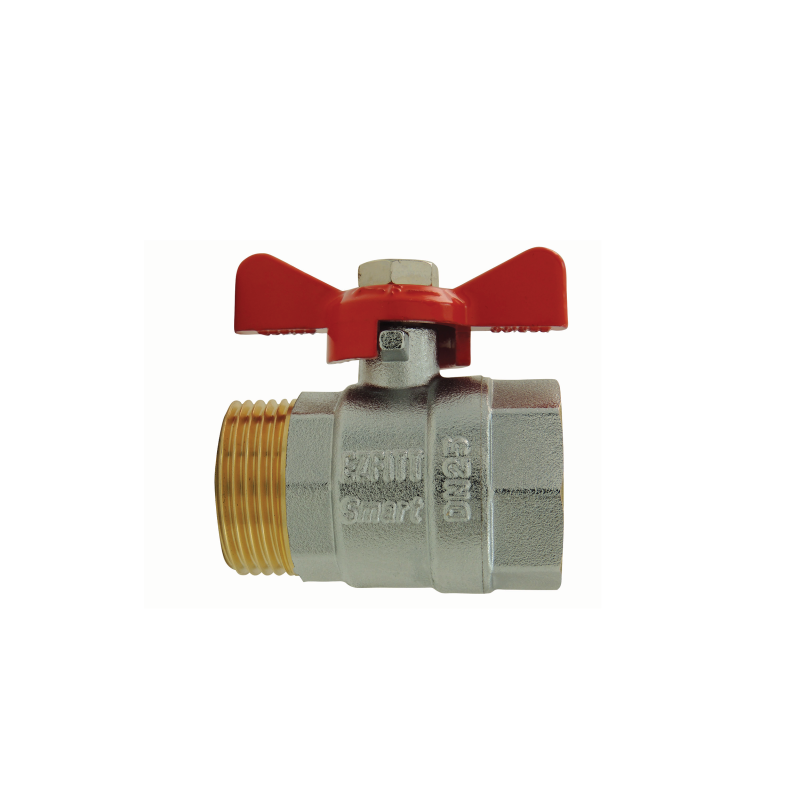

Male/Female ball valve, red butterfly handle
Ref. 124
- Forged brass ball valve, nickel plated on outer surface.
- Designed, manufactured and controlled according to European standard EN 13828.
- Standard bore.
- Tightness with 2 EPDM O'rings.
- Anti blow-out stem.
- BSPP female threaded ends according to ISO 228-1 standard.
- Flat bearing area to make tightness with flat gasket.
- Reversible handle with operating direction ON/OFF.
- Data matrix code on label (to access technical sheet from a smartphone).
- Marking and traceability (manufacturing date, PN, size, ACS, EZFITT Smart).
- Tightness 100% tested.
- Temperature : -10°C/+120°C
Certification :
• WRAS
See the POS marketing kit SMART
Change handle
| Ø | Kg | PN | ØD | ØE | L1 | L2 | H |
|---|---|---|---|---|---|---|---|
| 3/8" | 0.081 | 32 | 10 | 23 | 40 | 44 | 30 |
| 1/2" | 0.115 | 32 | 13.5 | 27 | 45 | 44 | 34 |
| 3/4" | 0.164 | 32 | 18 | 33 | 50.5 | 53 | 37 |
| 1" | 0.274 | 32 | 22 | 40 | 61 | 63 | 44.5 |
