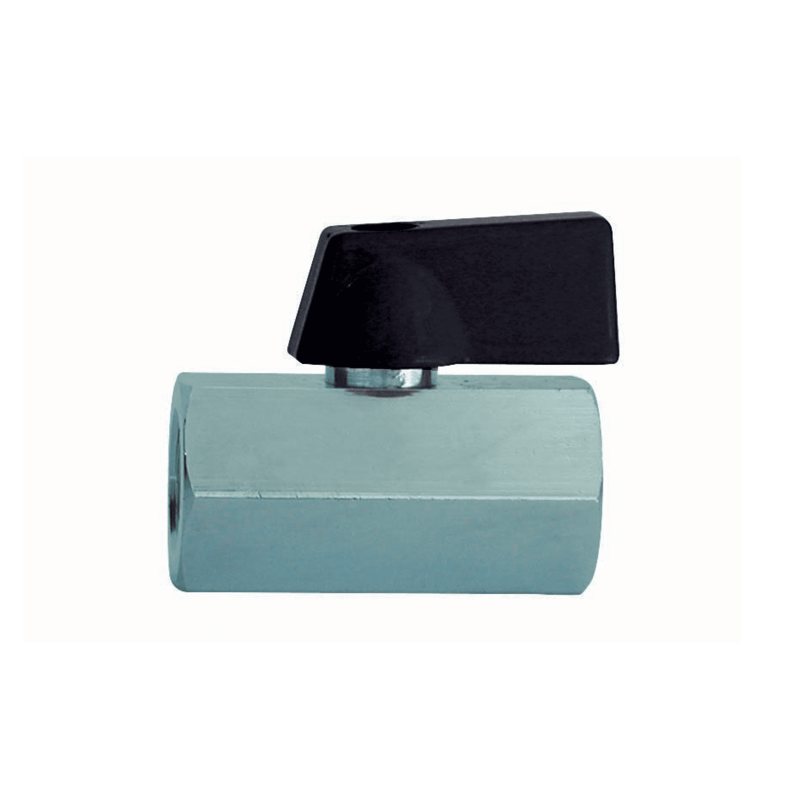

Female/Female mini ball valve, black handle
Ref. 236
• Body and ball hot stamped chrome plated brass OT58
• PN 10
• PTFE seats - O ring EPDM
• ISO228 threadings
Certification :
• ACS • WRAS
See the POS marketing kit ADVANCE
Change thread connection

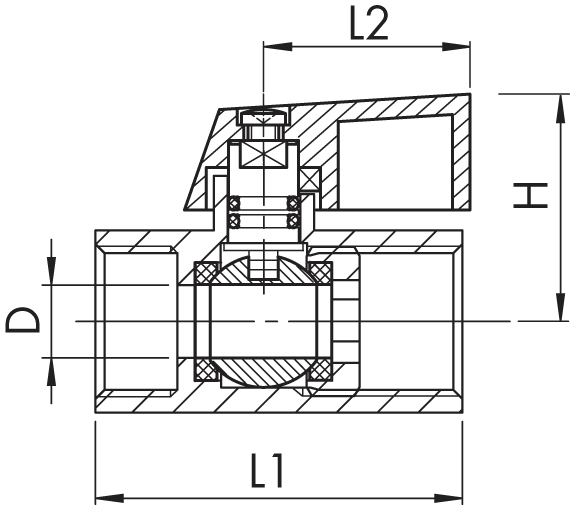

| Ø | Kg | PN | D | L1 | L2 | H |
|---|---|---|---|---|---|---|
| 1/8" | 0.087 | 10 | 8 | 35 | 24 | 27 |
| 1/4" | 0.083 | 10 | 8 | 37 | 24 | 27 |
| 3/8" | 0.08 | 10 | 8 | 40.5 | 24 | 27 |
| 1/2" | 0.109 | 10 | 10 | 44.5 | 24 | 30 |
| 3/4" | 0.194 | 10 | 13.5 | 55 | 24 | 31 |
Downloadable documents
| Name | Type | Size | |
|---|---|---|---|
| Technical sheet - Advance - F/F mini-valve, black handle - Ref : 236 | 0.61 Mo | Download |
Technical sheet - Advance - F/F mini-valve, black handle - Ref : 236
0.61 Mo pdf
