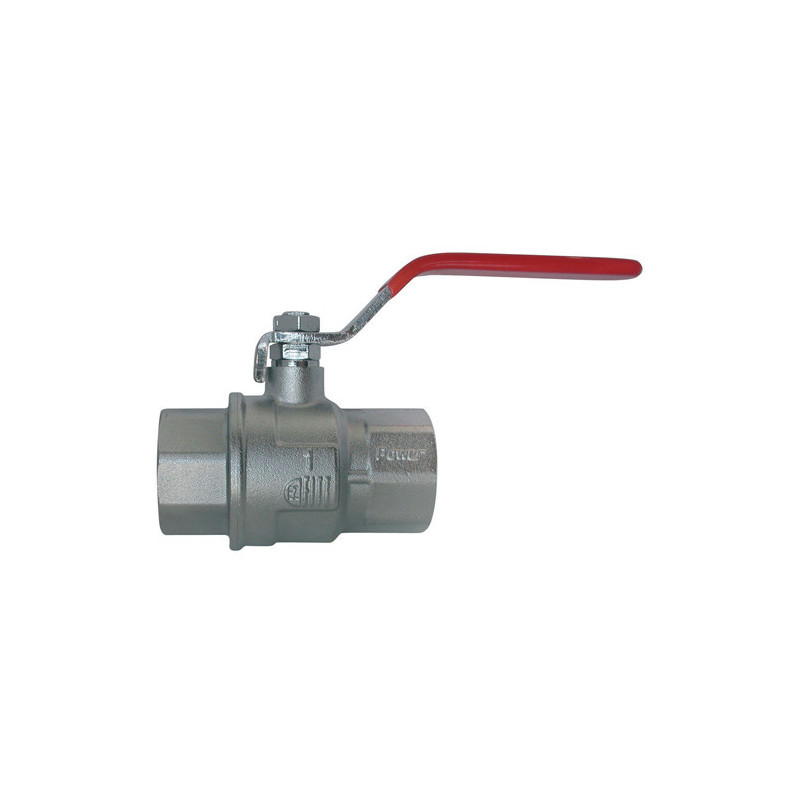

2-ways ball valve, Female/Female, red flat handle

Ref. 320
• Full bore
• Body, ball and socket brass CW617N
• temperature -20°C to +160°C
• PN 40
• Double waterproofness : 2 FKM o-rings and 1 PTFE packing gland
• Long threads ISO 7-1
• Lot number and production date printed on the handle and the body


ILV See the POS marketing kit POWER
Change handle
See all configurations
Ø Code SU Sachet Carton Qty
1/4" 39201 18 18 144
3/8" 39202 18 18 144
1/2" 39203 12 12 96
3/4" 39204 9 9 72
1" 39205 4 4 32
1"1/4 39206 1 24
1"1/2 39207 1 18
2" 39208 1 12
2"1/2 39209 1 6
3" 39210 1 2
4" 39211 1 2
Créer
2-ways ball valve, Female/Female, red flat handle
Ø Kg PN D L L1 L2 H
1/4" 0.16 64 10 52 24 82 45
3/8" 0.14 64 10 52 24 82 45
1/2" 0.223 40 15 62 32 100 57
3/4" 0.355 40 20 69 39 114 66
1" 0.535 40 25 83 49 114 68
1"1/4 0.95 32 32 96 59 145 85
1"1/2 1.345 25 40 108 73 145 91
2" 1.92 25 50 126 89 162 108
2"1/2 3.906 25 63 152 111 216 131
3" 5.37 25 75 176 130 216 141
4" 9.15 25 95 214 162 243 157

Downloadable documents

Name Type Size
Technical sheet - Power - F/F chrome plated brass 2 way valve, red flat handle - Ref : 320 pdf 0.8 Mo Download

Technical sheet - Power - F/F chrome plated brass 2 way valve, red flat handle - Ref : 320

0.8 Mo pdf
