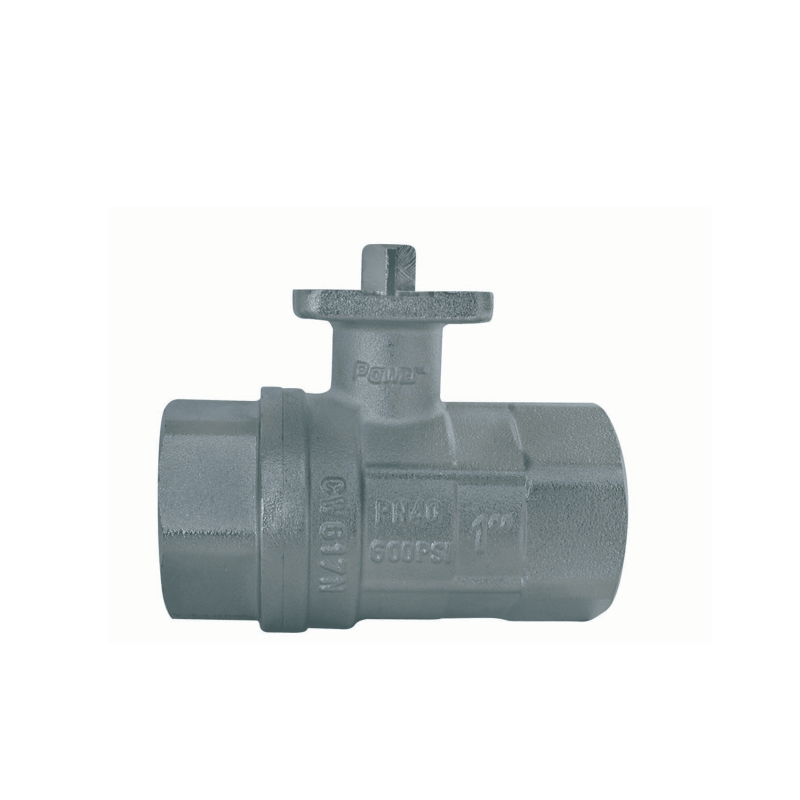

2-ways ball valve, F/F, ISO 5211 mounting pad & square bare shaft

Ref. 313
• Full bore
• Body, ball and socket brass CW617N
• temperature -20°C to +160°C
• PN 40
• Double waterproofness : 2 FKM o-rings and 1 PTFE packing gland
• Long threads ISO 7-1
• Lot number and production date printed on the handle and the body
See all configurations
Ø Code SU Sachet Carton Qty
1/4" 39131 12 12 96
3/8" 39132 12 12 96
1/2" 39133 10 10 80
3/4" 39134 10 10 80
1" 39135 4 4 32
1"1/4 39136 1 3 24
1"1/2 39137 1 2 16
2" 39138 1 12
2"1/2 39139 1 6
3" 39140 1 4
Créer
2-ways ball valve, F/F, ISO 5211 mounting pad & square bare shaft
Ø Kg PN D L H H2 ◊ ISO A ØB
1/4" 0.23 64 11 51 29 9 9 F03 38 36
3/8" 0.215 64 11 51 29 9 9 F03 38 36
1/2" 0.305 40 14 67 33 9 9 F03 38 36
3/4" 0.4 40 19 76 35 9 9 F03 38 36
1" 0.69 40 25 90 43 9 9 F03 38 36
1"1/4 0.94 32 30 102 49 9 9 F03 38 36
1"1/2 1.65 25 37 114 64 9 11 F05 50 50
2" 2.5 25 50 137 71 11 11 F05 50 50
2"1/2 4.56 25 62 165 86 14 14 F07 70 70
3" 6.82 25 74 188 98 14 14 F07 70 70
