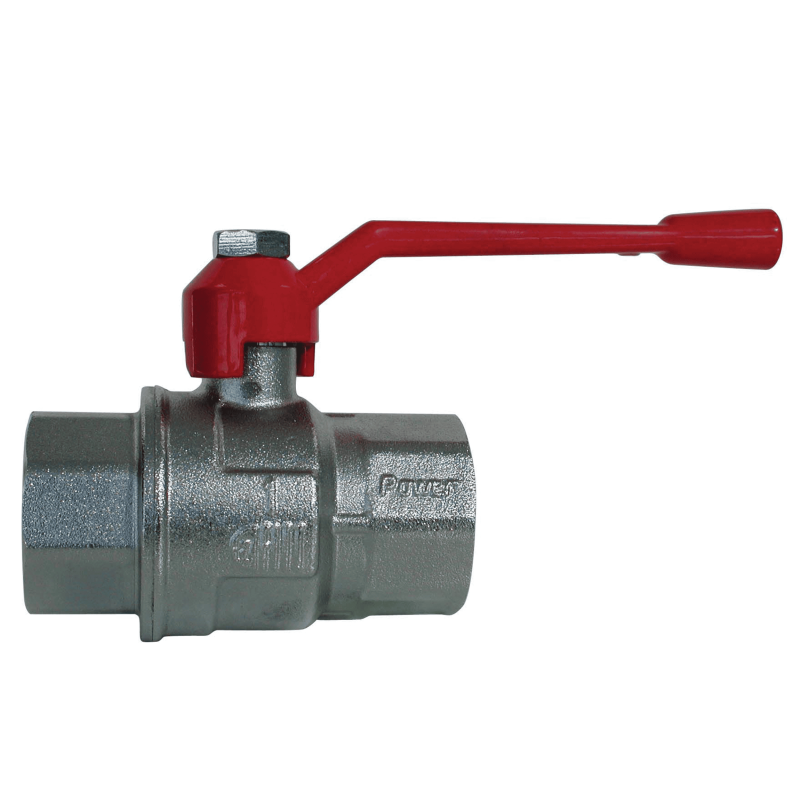

2-ways ball valve, Female/Female, red cylindrical handle
search
  • 2-ways ball valve, Female/Female, red cylindrical handle

2-ways ball valve, Female/Female, red cylindrical handle

Ref. 319
• Full bore
• Body, ball and socket brass CW617N
• temperature -20°C to +160°C
• PN 40
• Double waterproofness : 2 FKM o-rings and 1 PTFE packing gland
• Long threads ISO 7-1
• Lot number and production date printed on the handle and the body
ILV See the POS marketing kit POWER
Change handle
See all configurations
Ø Code SU Sachet Carton Qty
1/4" 39191 18 18 144
3/8" 39192 18 18 144
1/2" 39193 12 12 96
3/4" 39194 9 9 72
1" 39195 4 4 32
1"1/4 39196 1 24
1"1/2 39197 1 18
2" 39198 1 12
2"1/2 39199 1 6
3" 39200 1 4
4" 39190 1 2
Créer
2-ways ball valve, Female/Female, red cylindrical handle
Ø Kg PN D L L1 L2 H
1/4" 0.136 64 10 52 24 70 36
3/8" 0.117 64 10 52 24 70 36
1/2" 0.219 40 15 62 32 100 44
3/4" 0.32 40 20 69 39 108 51
1" 0.495 40 25 83 49 108 55
1"1/4 0.92 32 32 96 59 160 70
1"1/2 1.287 25 40 108 73 160 77
2" 1.91 25 50 126 86 160 83
2"1/2 3.796 25 63 152 111 215 119
3" 5.27 25 75 176 130 215 129
4" 9.1 25 95 214 162 250 150
