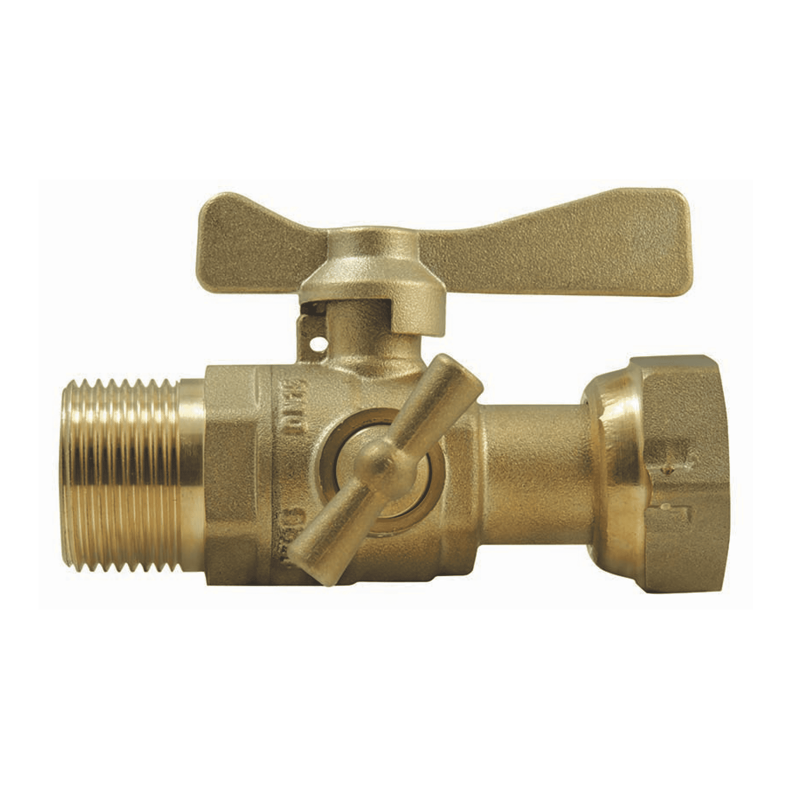

Water meter drain ball valve, Male, brass asymmetric handle
Ref. 246
- Swivel nut with 1 sealing hole
- Material brass CW617N
- NBR o'ring (80°C max)
- PTFE seat
- Asymmetric butterfly handle
- PN25
Certification :
• WRAS
See the POS marketing kit ADVANCE
| ØA x ØB | Kg | PN | D | L1 | L2 | H |
|---|---|---|---|---|---|---|
| 1/2" x 3/4" | 0.289 | 25 | 15 | 80 | 68 | 41 |
| 3/4" x 3/4" | 0.303 | 25 | 15 | 80 | 68 | 41 |
| 1" x 1" | 0.503 | 25 | 20 | 85 | 71 | 47 |
Downloadable documents
| Name | Type | Size | |
|---|---|---|---|
| Technical sheet - Advance - M/F water-meter drain valve, asymmetric butterfly handle - Ref : 246 | 0.63 Mo | Download |
Technical sheet - Advance - M/F water-meter drain valve, asymmetric butterfly handle - Ref : 246
0.63 Mo pdf
