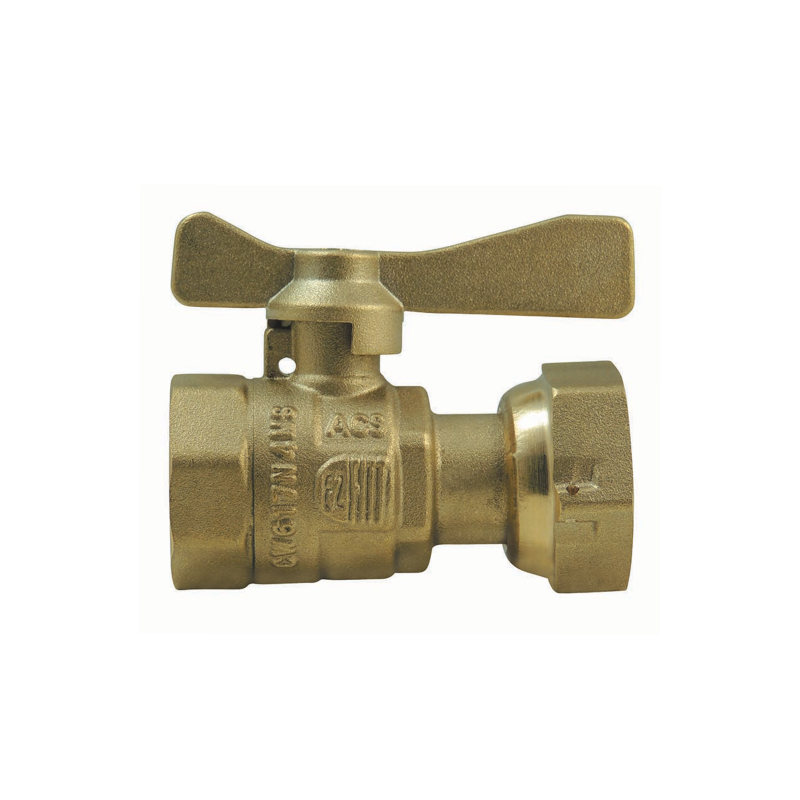

Straight water meter ball valve, Female, brass asymmetric handle
Ref. 240
- Swivel nut with 1 sealing hole
- Material brass CW617N
- NBR o'ring (80°C max)
- PTFE seat
- Asymetric butterfly handle
- PN25
Certifications
• BI21
• WRAS
See the POS marketing kit ADVANCE
Change handle
| ØA x ØB | Kg | PN | D | L1 | L2 | H |
|---|---|---|---|---|---|---|
| 1/2" x 3/4" | 0.219 | 25 | 15 | 55 | 68 | 41 |
| 3/4" x 3/4" | 0.227 | 25 | 15 | 56.5 | 68 | 41 |
Downloadable documents
| Name | Type | Size | |
|---|---|---|---|
| Technical sheet - Advance - F/F water-meter valve, asymmetric butterfly handle - Ref : 240 | 0.62 Mo | Download |
Technical sheet - Advance - F/F water-meter valve, asymmetric butterfly handle - Ref : 240
0.62 Mo pdf
