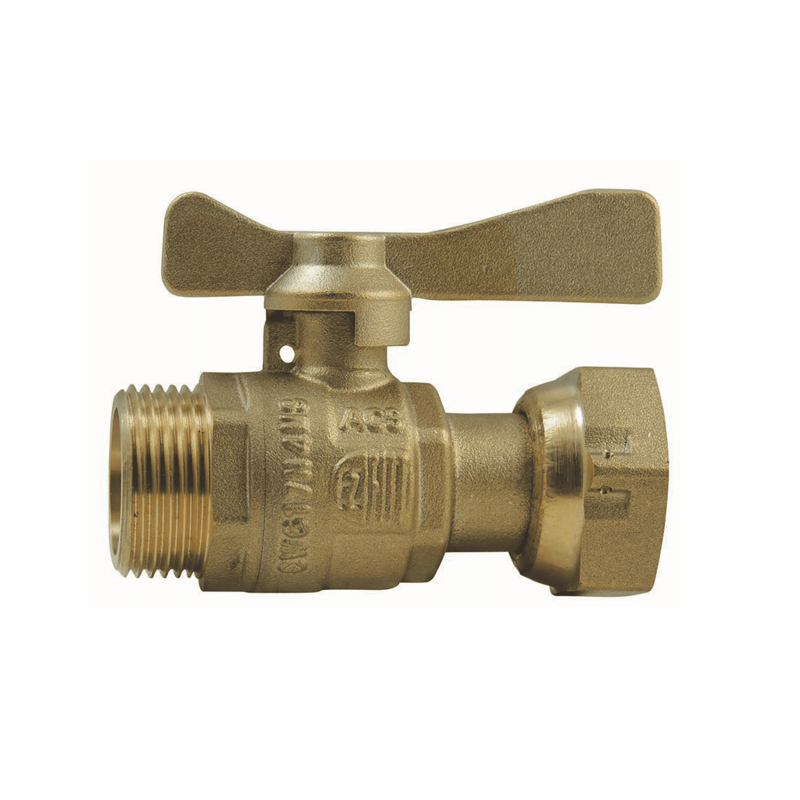

Straight water meter ball valve, Male, brass asymmetric handle
Ref. 243
- Swivel nut with 1 sealing hole
- Material brass CW617N
- NBR o'ring (80°C max)
- PTFE seat
- Asymetric butterfly handle
- PN25
Certification :
• WRAS
See the POS marketing kit ADVANCE
Change model
| ØA x ØB | Kg | PN | D | L1 | L2 | H | H2 |
|---|---|---|---|---|---|---|---|
| 1/2" x 3/4" | 0.226 | 25 | 15 | 62 | 68 | 41 | 76 |
| 3/4" x 3/4" | 0.238 | 25 | 15 | 63 | 68 | 41 |
Downloadable documents
| Name | Type | Size | |
|---|---|---|---|
| Technical sheet - Advance - M/F water-meter valve, asymmetric butterfly handle - Ref : 243 | 0.59 Mo | Download |
Technical sheet - Advance - M/F water-meter valve, asymmetric butterfly handle - Ref : 243
0.59 Mo pdf
