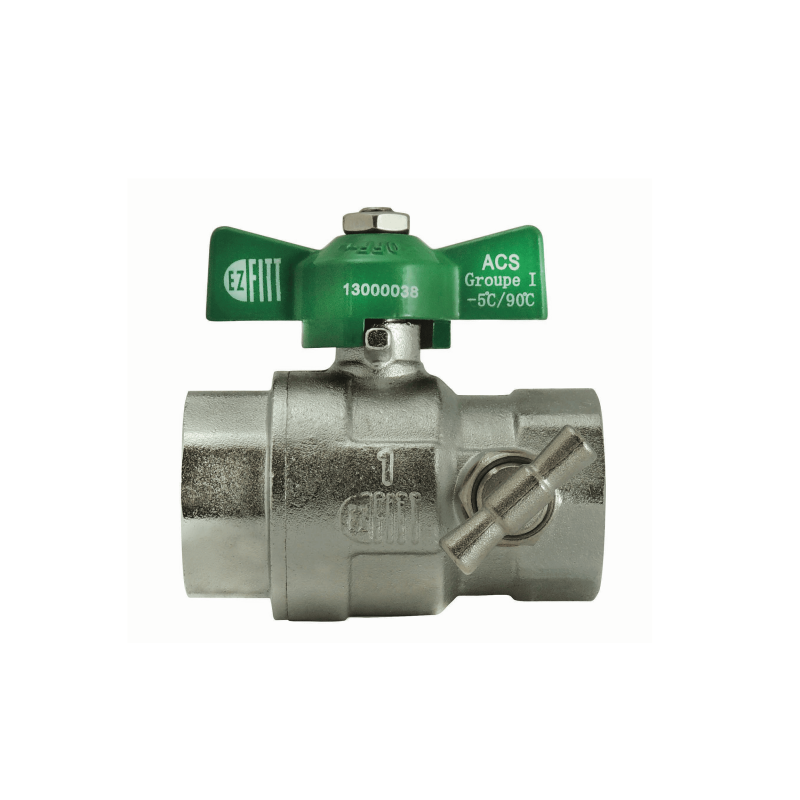

NF drain valve Female/Female, green butterfly handle
Ref. 528
Technical properties :
- Drain valve made of CW617 forged brass (EU standard), 100% chrome plated
- Design, manufactuting and control according to NF079 standard
- Drain 1/4"
- Full bore
- Peak temperature 110°C (operating temperature : -5°C to +90°C)
- Threads ISO 228-1
- Double EPDM o-ring
- Anti blow-out stem
- Aluminium handle + stainless steel nul (anti-corrosion)
- Flashcode on handle (to access to technical sheets and user instructions with a smartphone)
- Complete traceability (batch numbers on body and handle)
- Drain valve made of CW617 forged brass (EU standard), 100% chrome plated
- Design, manufactuting and control according to NF079 standard
- Drain 1/4"
- Full bore
- Peak temperature 110°C (operating temperature : -5°C to +90°C)
- Threads ISO 228-1
- Double EPDM o-ring
- Anti blow-out stem
- Aluminium handle + stainless steel nul (anti-corrosion)
- Flashcode on handle (to access to technical sheets and user instructions with a smartphone)
- Complete traceability (batch numbers on body and handle)
See the POS marketing kit NF
Change handle
| Ø | Kg | PN | D | L | L1 | L2 | H |
|---|---|---|---|---|---|---|---|
| 1/2" | 0.235 | 40 | 15 | 59 | 30 | 52 | 39 |
| 3/4" | 0.344 | 40 | 20 | 67 | 39 | 57 | 47 |
| 1" | 0.537 | 40 | 25 | 77 | 47 | 65 | 54 |
Downloadable documents
| Name | Type | Size | |
|---|---|---|---|
| Technical sheet - NF - F/F drain valve, green flat handle - Ref : 526, 528, 529, 530, 531, 532 | 1.71 Mo | Download | |
| Assembling instructions | 0.11 Mo | Download |
Technical sheet - NF - F/F drain valve, green flat handle - Ref : 526, 528, 529, 530, 531, 532
1.71 Mo pdf
Assembling instructions
0.11 Mo pdf
