  • NF ball valve Female/Female, green butterfly handle

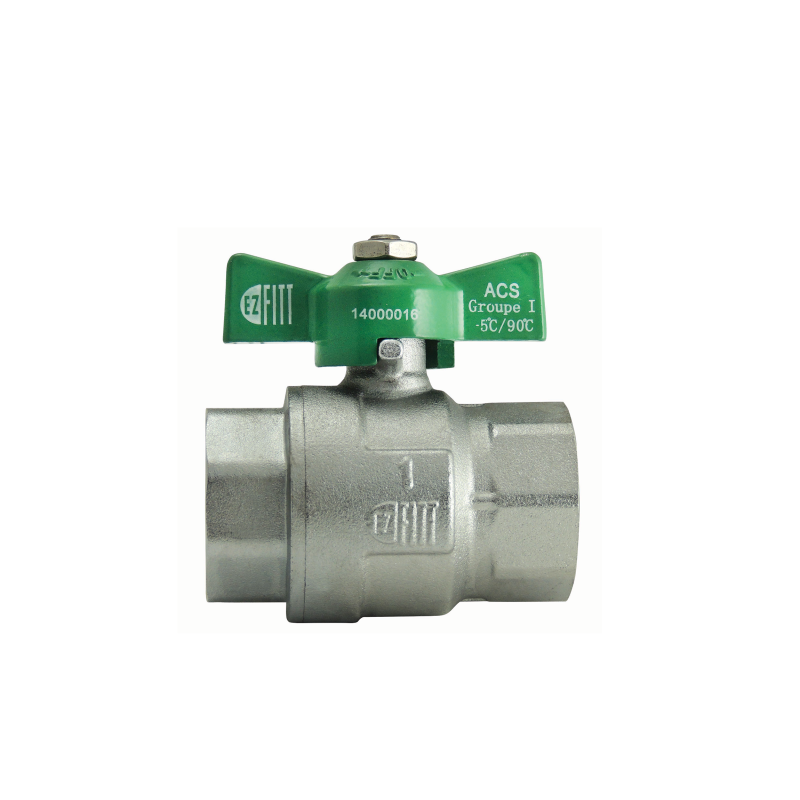

NF ball valve Female/Female, green butterfly handle

Ref. 523
Technical properties :

- Drain valve made of CW617 forged brass (EU standard), 100% chrome plated
- Design, manufactuting and control according to NF079 standard
- Full bore
- Peak temperature 110°C (operating temperature : -5°C to +90°C)
- Threads ISO 228-1
- Double EPDM o-ring
- Anti blow-out stem
- Aluminium handle + stainless steel nul (anti-corrosion)
- Flashcode on handle (to access to technical sheets and user instructions with a smartphone)
- Complete traceability (batch numbers on body and handle)
ILV See the POS marketing kit NF
  • NF
  • ACS
  • 4MS
Change handle
See all configurations
Ø Code SU Sachet Carton Qty
1/4" 59230 25 25 200
3/8" 59231 25 25 200
1/2" 59232 18 18 144
3/4" 59233 10 10 80
1" 59234 8 8 64
Créer
NF ball valve Female/Female, green butterfly handle
Ø Kg PN D L L1 L2 H
1/4" 0.096 40 8 39 23 52 34
3/8" 0.1 40 10 43 24 52 34
1/2" 0.161 40 15 51 30 52 39
3/4" 0.278 40 20 61 39 57 47
1" 0.46 40 25 72 47 65 54

Downloadable documents

Name Type Size
Technical sheet - NF - F/F valve, green flat handle - Ref : 520, 521, 522, 523, 524, 525 pdf 1.53 Mo Download

Technical sheet - NF - F/F valve, green flat handle - Ref : 520, 521, 522, 523, 524, 525

1.53 Mo pdf
