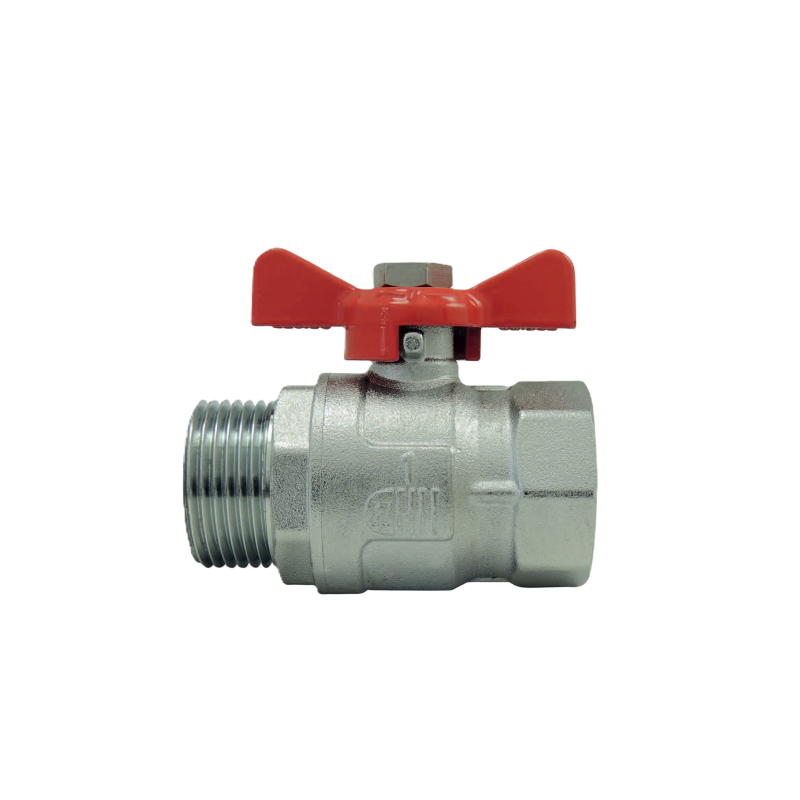

Male/Female ball valve, red butterfly handle

Ref. 224

• Full bore
• Body, ball and socket hot stamped chrome plated brass
• Maximum temperature 120 °C
• PN40
• PTFE seats - O ring EPDM
• Double o-ring stem anti leakage technology
• Chrome plated stem with nut
• ISO228 threadings
• Production date and lot number marking

Certification :

• WRAS

ILV See the POS marketing kit ADVANCE
  • ACS
  • 4MS
  • WRAS
Change handle
See all configurations
Ø Code SU Sachet Carton Qty
3/8" 29241 20 20 160
1/2" 29242 14 14 112
3/4" 29243 12 12 96
1" 29244 7 7 56
Créer
Male/Female ball valve, red butterfly handle
Ø Kg PN D L1 E L2 H
3/8" 0.103 40 10 47 24 44 36
1/2" 0.144 40 14.5 54 28 44 36
3/4" 0.25 40 19 65 36 53 46
1" 0.398 40 24 76 43 63 53
