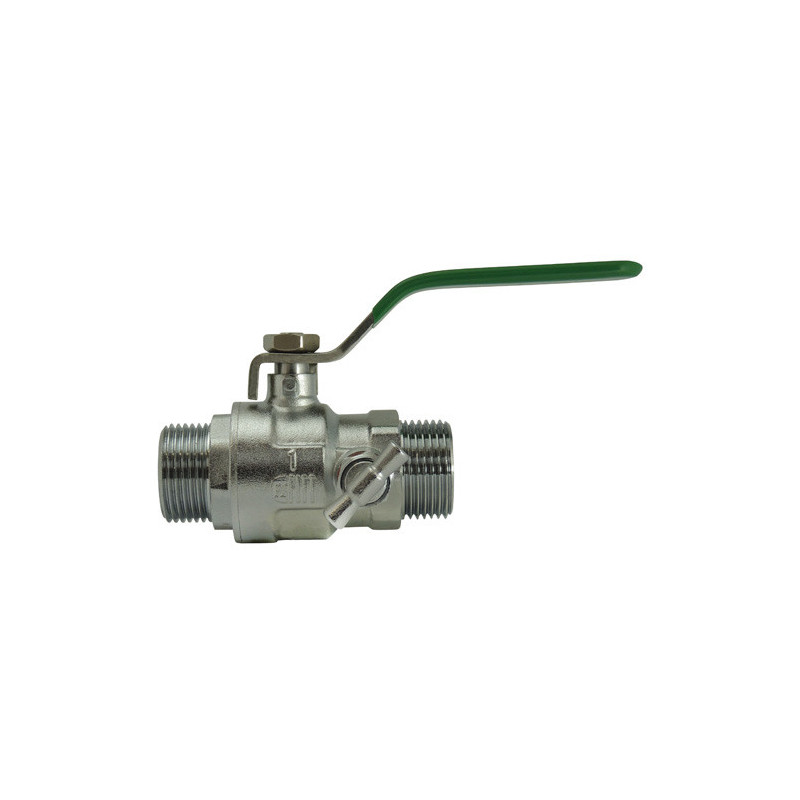

Válvula de purga NF Macho/Macho, palanca plana verde de inox
Ref. 530
Ver el kit ILV NF

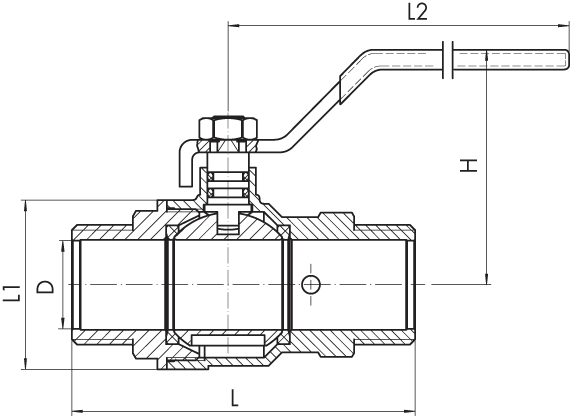

| Ø | Kg | PN | D | L | L1 | L2 | H |
|---|---|---|---|---|---|---|---|
| 1/2" | 0.301 | 40 | 14 | 73 | 30 | 88 | 48 |
| 3/4" | 0.42 | 40 | 19 | 84 | 39 | 88 | 52 |
| 1" | 0.659 | 40 | 24.5 | 96 | 47 | 114 | 65 |
Documentos descargables
| Nombre | Tipo | Tamaño | |
|---|---|---|---|
| Ficha técnica - NF - Válvula con purga H/H, palanca plana verde - Ref : 526, 528, 529, 530, 531, 532 | 1.71 Mo | Descargas | |
| Assembling instructions | 0.11 Mo | Descargas |
Ficha técnica - NF - Válvula con purga H/H, palanca plana verde - Ref : 526, 528, 529, 530, 531, 532
1.71 Mo pdf
Assembling instructions
0.11 Mo pdf
