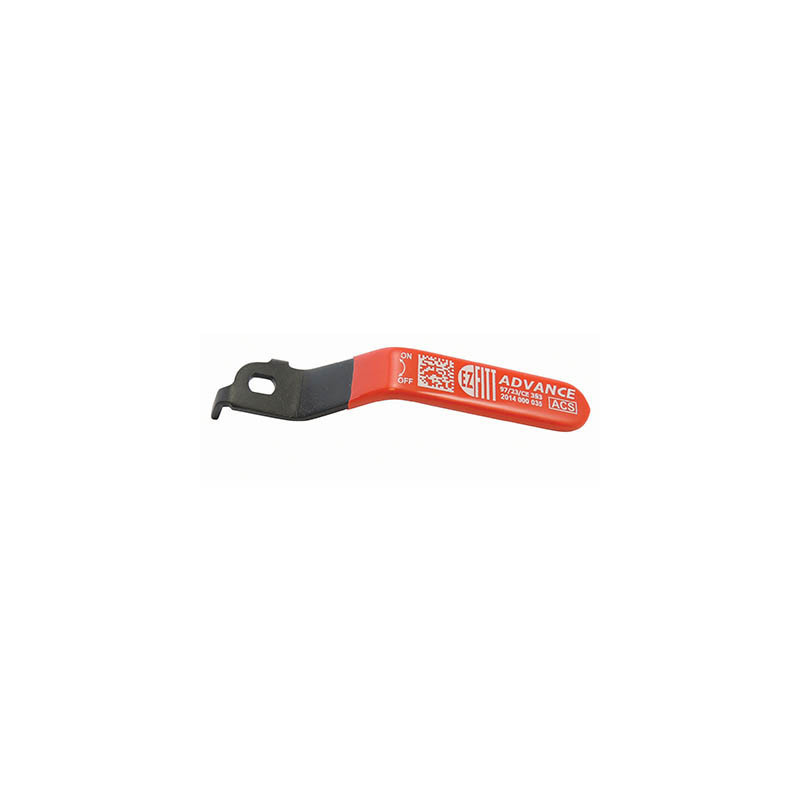

Palanca plana roja Advance, acero recubierto anti-corrosion
Ref. 901
Compatible con las referencias:
220, 221, 222, 223*, 224*, 225*, 226, 228*, 230, 231*, 251*, 257, 280, 298*.
220, 221, 222, 223*, 224*, 225*, 226, 228*, 230, 231*, 251*, 257, 280, 298*.
*Lote ≥ 2015
**Lote ≥ 2022
(1) 217, 217R, 227, 227R, 267**, 267R** : 3/8"x1/2" → 3/4"x1"
(2) 227 : 1"x1"1/4
Ver el kit ILV ADVANCE
Cambiar color
| Ø | ØA | B |
|---|---|---|
| 1/4"- 3/8" | Ø8 | 6 |
| 1/2" (1) | Ø8 | 6 |
| 3/4" (2) | Ø8 | 6 |
| 1" | Ø10 | 6 |
| 1"1/4 | Ø11,5 | 8 |
| 1"1/2 - 2" | ||
| 2"1/2 | ||
| 3" | Ø19 | 12 |
| 4" | Ø19 | 12 |
Documentos descargables
| Nombre | Tipo | Tamaño | |
|---|---|---|---|
| Ficha técnica - Advance - Palanca plana con funda roja - Ref : 901, 903, 905 | 0.4 Mo | Descargas | |
| Assembling instructions | 0.11 Mo | Descargas |
Ficha técnica - Advance - Palanca plana con funda roja - Ref : 901, 903, 905
0.4 Mo pdf
Assembling instructions
0.11 Mo pdf
