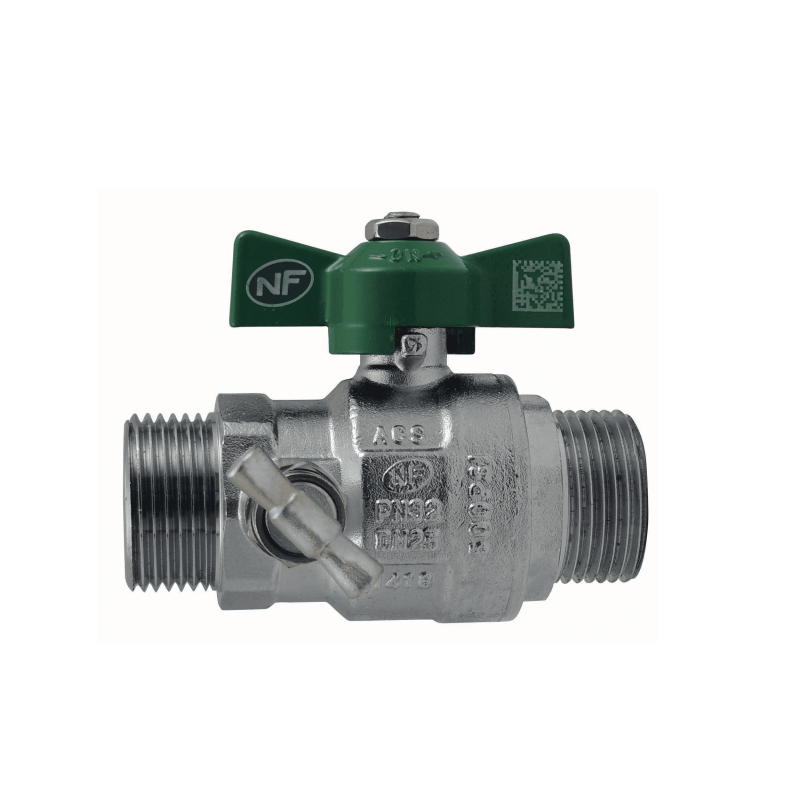

NF drain valve Male/Male, green butterfly handle
Ref. 531
Technical properties :
- Drain valve made of CW617 forged brass (EU standard), 100% chrome plated
- Design, manufactuting and control according to NF079 standard
- Drain 1/4
- Full bore
- Peak temperature 110°C (operating temperature : -5°C to +90°C)
- Threads ISO 228-1
- Double EPDM o-ring
- Anti blow-out stem
- Aluminium handle + stainless steel nul (anti-corrosion)
- Flashcode on handle (to access to technical sheets and user instructions with a smartphone)
- Complete traceability (batch numbers on body and handle)
- Drain valve made of CW617 forged brass (EU standard), 100% chrome plated
- Design, manufactuting and control according to NF079 standard
- Drain 1/4
- Full bore
- Peak temperature 110°C (operating temperature : -5°C to +90°C)
- Threads ISO 228-1
- Double EPDM o-ring
- Anti blow-out stem
- Aluminium handle + stainless steel nul (anti-corrosion)
- Flashcode on handle (to access to technical sheets and user instructions with a smartphone)
- Complete traceability (batch numbers on body and handle)
See the POS marketing kit NF
Change handle
| Ø | Kg | PN | D | L | L1 | L2 | H |
|---|---|---|---|---|---|---|---|
| 1/2" | 0.273 | 40 | 14 | 73 | 30 | 52 | 39 |
| 3/4" | 0.394 | 40 | 19 | 84 | 39 | 57 | 47 |
| 1" | 0.614 | 40 | 24.5 | 96 | 47 | 65 | 54 |
