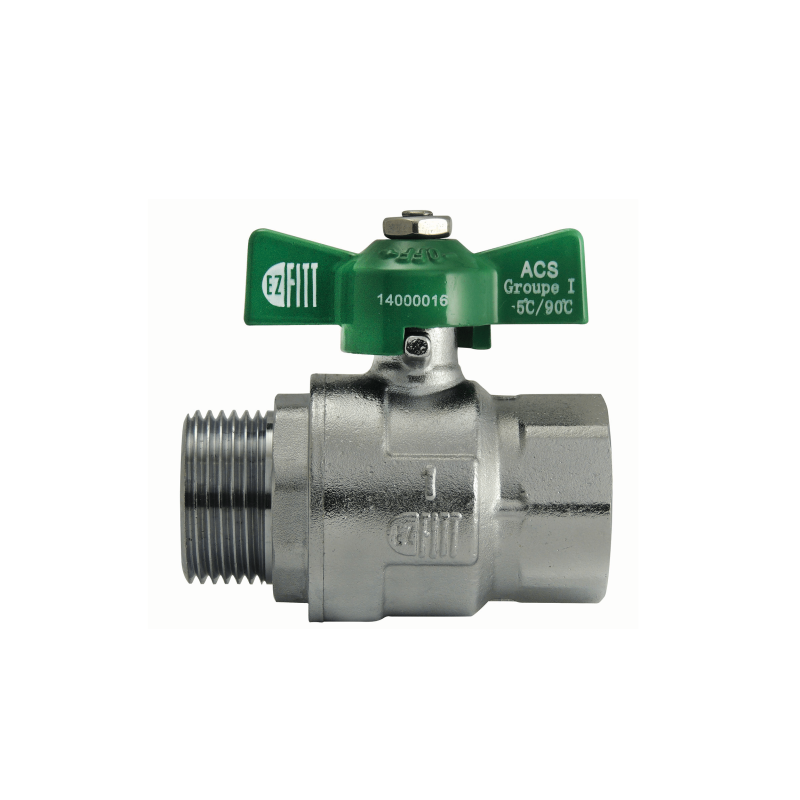

NF ball valve Male/Female, green butterfly handle

Ref. 524
Technical properties :

- Drain valve made of CW617 forged brass (EU standard), 100% chrome plated
- Design, manufactuting and control according to NF079 standard
- Full bore
- Peak temperature 110°C (operating temperature : -5°C to +90°C)
- Threads ISO 228-1
- Double EPDM o-ring
- Anti blow-out stem
- Aluminium handle + stainless steel nul (anti-corrosion)
- Flashcode on handle (to access to technical sheets and user instructions with a smartphone)
- Complete traceability (batch numbers on body and handle)
ILV See the POS marketing kit NF
  • NF
  • ACS
  • 4MS
Change handle
See all configurations
Ø Code SU Sachet Carton Qty
1/4" 59240 25 25 200
3/8" 59241 25 25 200
1/2" 59242 15 15 120
3/4" 59243 10 10 80
1" 59244 7 7 56
Créer
NF ball valve Male/Female, green butterfly handle
Ø Kg PN D L L1 L2 H
1/4" 0.099 40 8 45 23 52 34
3/8" 0.109 40 10 49 24 52 34
1/2" 0.17 40 14 58 30 52 39
3/4" 0.291 40 19 68 39 57 47
1" 0.488 40 24.5 80 47 65 54

Downloadable documents

Name Type Size
Technical sheet - NF - F/F valve, green flat handle - Ref : 520, 521, 522, 523, 524, 525 pdf 1.53 Mo Download

Technical sheet - NF - F/F valve, green flat handle - Ref : 520, 521, 522, 523, 524, 525

1.53 Mo pdf
