  • Female/Female ball valve, red flat handle

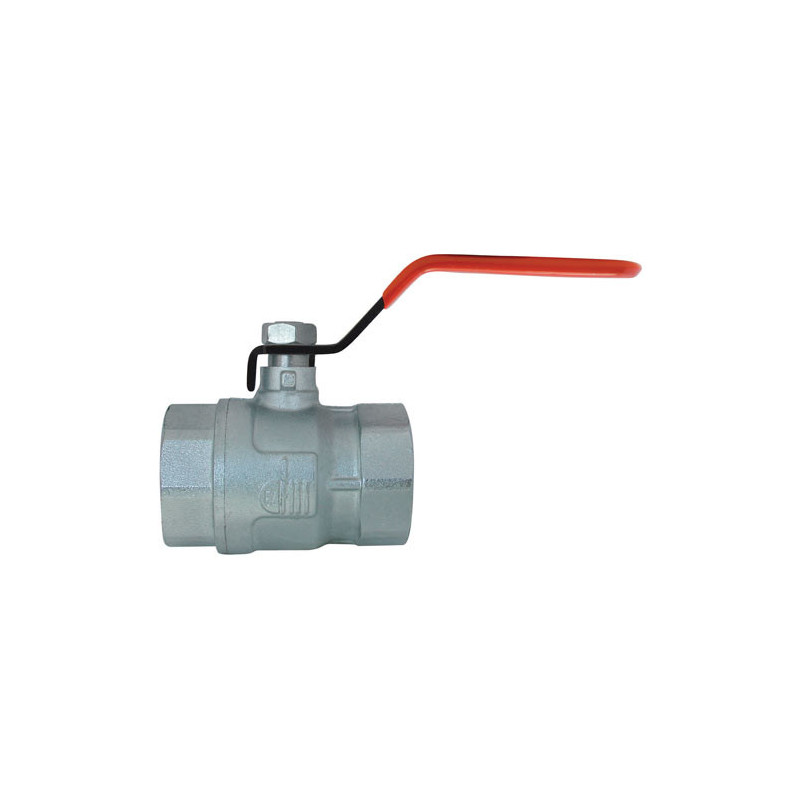

Female/Female ball valve, red flat handle

Ref. 220

• Full bore
• Body, ball and socket hot stamped chrome plated brass
• Maximum temperature 120 °C
• PN40
• PTFE seats - O ring EPDM
• Steel handle with anti-corrosion black zinc-aluminum coating
• Double o-ring stem anti leakage technology
• Chrome plated stem with nut
• ISO228 threadings
• Production date and lot number marking body and handle

Certification :

• WRAS

ILV See the POS marketing kit ADVANCE
  • ACS
  • 4MS
  • WRAS
Change handle
See all configurations
Ø Code SU Sachet Carton Qty
1/4" 29200 20 20 160
3/8" 29201 20 20 160
1/2" 29202 14 14 112
3/4" 29203 12 12 96
1" 29204 8 8 64
1"1/4 29205 1 1 45
1"1/2 29206 1 1 30
2" 29207 1 1 20
2"1/2 29208 1 1 10
3" 29209 1 1 6
4" 29210 1 4
Créer
Female/Female ball valve, red flat handle
Ø Kg PN D L1 E L2 H
1/4" 0.112 64 8 38 23 80 42
3/8" 0.112 40 10 40 24 80 43
1/2" 0.154 40 14.5 46 28 80 46
3/4" 0.264 40 19 57 36 100 54
1" 0.386 40 24 66 43 100 58
1"1/4 0.525 25 30 77 52 114 68
1"1/2 0.831 25 37 87 63 142 83
2" 1.256 25 47 100 79 142 91
2"1/2 2.357 25 62 132 103 182 110
3" 3.478 25 71 146 118 243 122
4" 5.604 25 92 172 152 243 148
