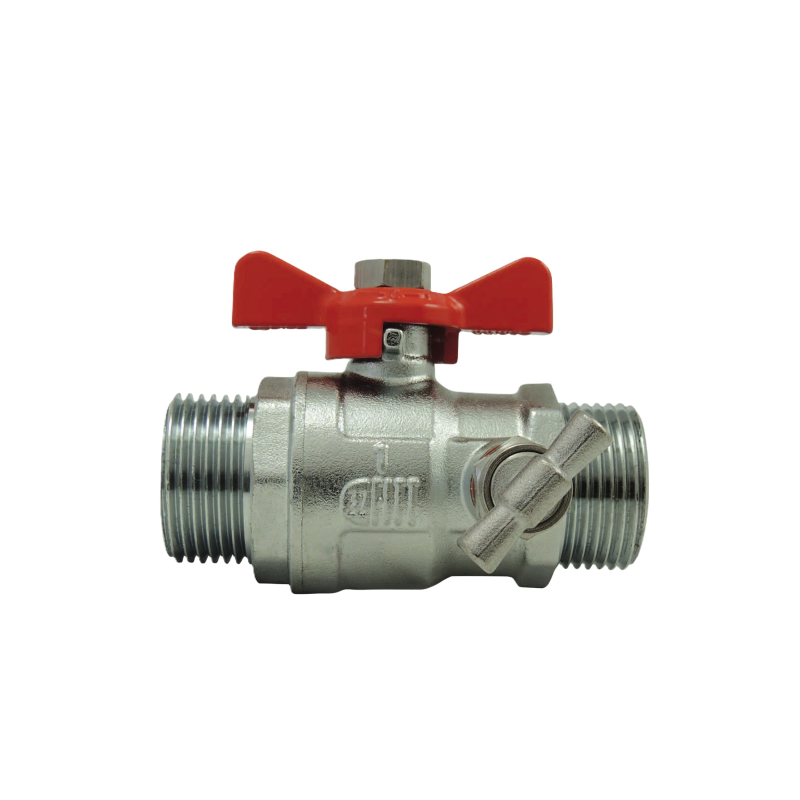

Male/Male drain valve, red butterfly handle
Ref. 231
• Full bore
• Body, ball and socket hot stamped chrome plated brass OT58
• Maximum temperature 120°C
• PN 32
• PTFE seats - O ring EPDM
• Red handle and chromed plated steel nut
• Double o-ring stem anti leakage technology
• Chrome plated stem with nut
• ISO228 threadings
• ACS
• CE
• Production date and lot number marking body and handle
• Body, ball and socket hot stamped chrome plated brass OT58
• Maximum temperature 120°C
• PN 32
• PTFE seats - O ring EPDM
• Red handle and chromed plated steel nut
• Double o-ring stem anti leakage technology
• Chrome plated stem with nut
• ISO228 threadings
• ACS
• CE
• Production date and lot number marking body and handle
See the POS marketing kit ADVANCE
Change handle
| Ø | Kg | PN | D | L1 | E | L2 | H |
|---|---|---|---|---|---|---|---|
| 3/8" | 0.164 | 40 | 10 | 59 | 24 | 44 | 36 |
| 1/2" | 0.226 | 40 | 14.5 | 69 | 28 | 44 | 36 |
| 3/4" | 0.337 | 40 | 19 | 78 | 36 | 53 | 46 |
| 1" | 0.5 | 40 | 24 | 91 | 43 | 63 | 53 |
