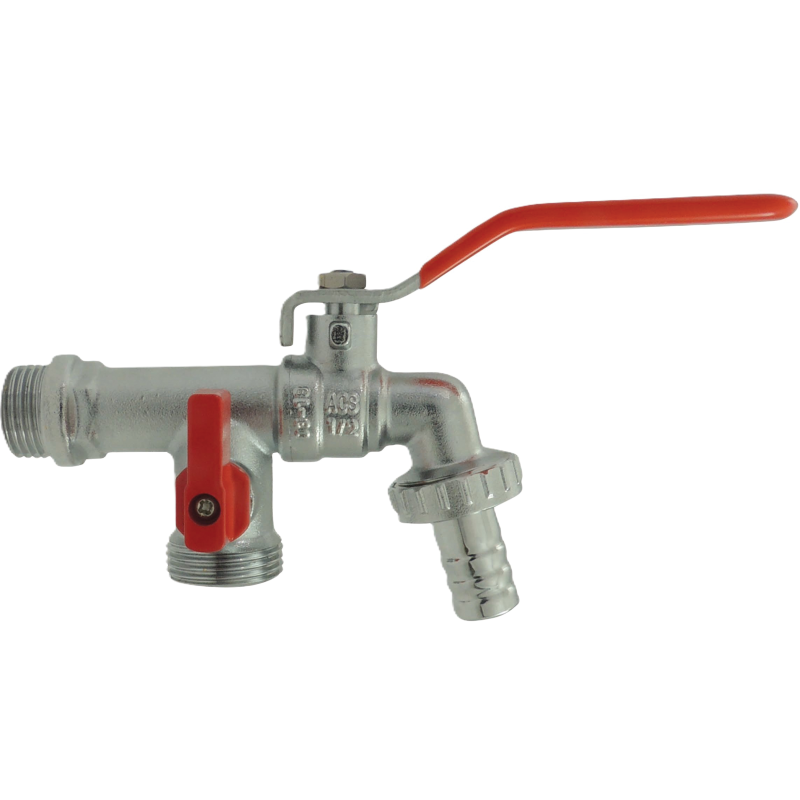

Garden bibcock double output for watering timer and hose connector
Ref. 267
Use conditions:
• Pressure: PN 16 bar
• Temperatures: -10/+80°C
• Fluids: water (drinkable, chlorinated, salted, glycol), unlubricated compressed air (10 bar max), non-aggressive fluids (compatibles EPDM/PTFE/brass)
Materials:
• 100% chrome plated brass
• Tightness with EPDM double O'rings.
• PTFE seat
• Handle with zinc-aluminium plating (anticorrosion).
Design:
• According to EN 13828
• Thread connection BSPP ISO 228-1
• Flat bearing area on male ends
Certification end traceability:
• ACS (drinking water)
• Pressure: PN 16 bar
• Temperatures: -10/+80°C
• Fluids: water (drinkable, chlorinated, salted, glycol), unlubricated compressed air (10 bar max), non-aggressive fluids (compatibles EPDM/PTFE/brass)
Materials:
• 100% chrome plated brass
• Tightness with EPDM double O'rings.
• PTFE seat
• Handle with zinc-aluminium plating (anticorrosion).
Design:
• According to EN 13828
• Thread connection BSPP ISO 228-1
• Flat bearing area on male ends
Certification end traceability:
• ACS (drinking water)
• WRAS
• Batch no on the handle and manufacturing date on the body.
See the POS marketing kit ADVANCE
Change connector type
| ØA x ØB | Kg | PN | D1 | L1 | L2 | L3 | H1 | H2 | T |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" x 3/4" | 0.295 | 16 | 72 | 72 | 93 | 36 | 89 | 37 | 15 |
Downloadable documents
| Name | Type | Size | |
|---|---|---|---|
| Technical sheet - Advance - Double bibcock, for timer, with hose connector, red handles - Ref : 267 | 0.93 Mo | Download | |
| Technical sheet - Advance - Double bibcock, for timer, with hose connector, red handles - Ref : 267 R | 1.02 Mo | Download |
Technical sheet - Advance - Double bibcock, for timer, with hose connector, red handles - Ref : 267
0.93 Mo pdf
Technical sheet - Advance - Double bibcock, for timer, with hose connector, red handles - Ref : 267 R
1.02 Mo pdf
