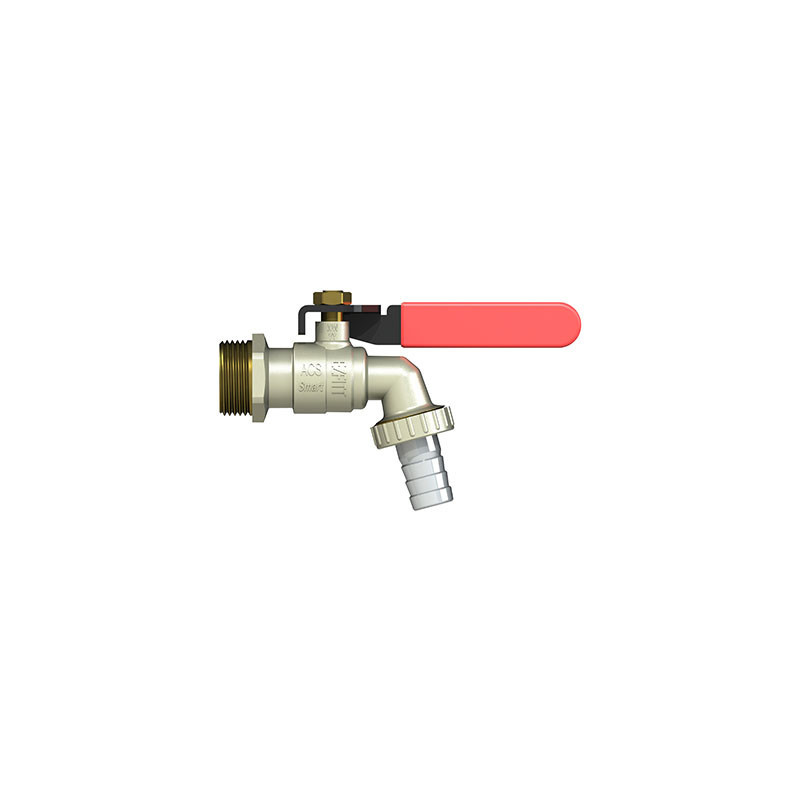

Garden bibcock with hose connector, ergonomic offset handle
Ref. 127
Applications : Drinking water, watering, irrigation.
Pressure : PN 16 bar.
Temperatures : 0°C / +80°C.
Technical features :
Technical features :
• CW617N-4MS forged brass ball valve, nickel plated on outer surfaces.
• Designed, manufactured and controlled according to European standard EN 13828.
• Tightness with 2 EPDM O-rings.
• Anti blow-out stem.
• Male threaded ends according to ISO 228-1 standard (BSPP Gas series).
• Ergonomic offset handle : Extended space for hand access & operating comfort thanks to its wide bearing surface.
• Marking and traceability (manufacturing date, size, ACS, EZFITT).
• Tightness 100% tested.
• QR code on handle and individual label in 3 languages with barcode and QR code (to access technical sheet and notice from a smartphone).
Certification :
• WRAS
See the POS marketing kit SMART
Change connector type
| ØA x ØB | Kg | PN | ØT | ØD | L1 | L2 | L3 | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" x 3/4" | 0.152 | 16 | 15 | 9 | 57 | 87 | 10.5 | 28 | 43 |
| 3/4" x 3/4" | 0.183 | 16 | 15 | 12 | 64 | 87 | 11.5 | 31 | 45 |
