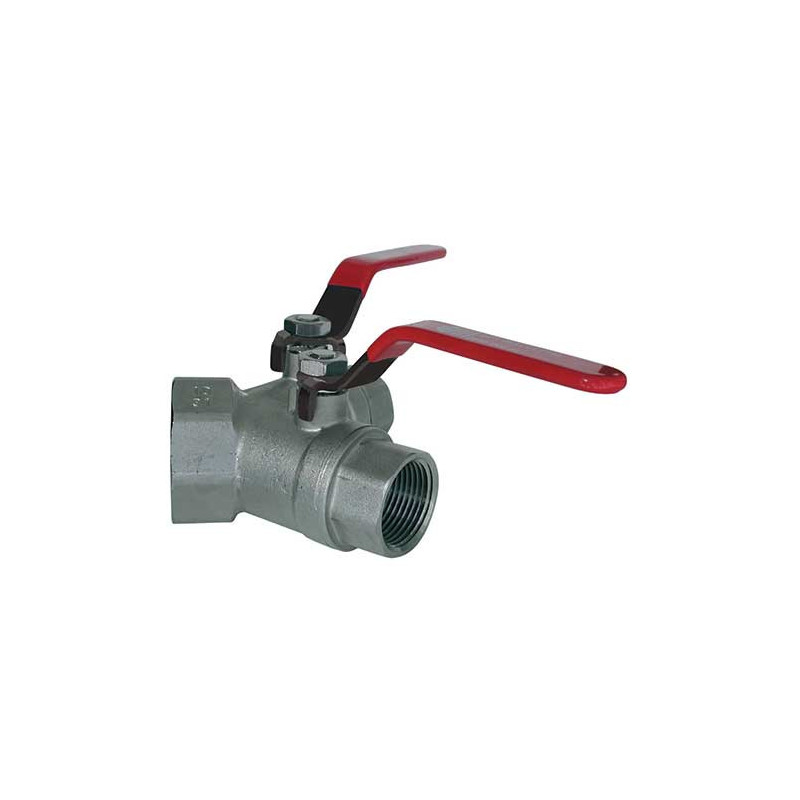

Y double ball valve, Female/Female/Female
Ref. 256
Brass nickel plated body, o'ring + packing gland. No certification for drinking water
• Maximum temperature 120 °C
• PN 40
• ISO228 threadings
Certification :
• WRAS
See the POS marketing kit ADVANCE
| Ø | Kg | PN | D | L1 | L2 | L3 | H |
|---|---|---|---|---|---|---|---|
| 3/4"x1/2"x1/2" | 0.354 | 40 | 14.5 | 16 | 80 | 105 | 47 |
| 1"x3/4"x3/4" | 0.65 | 40 | 19 | 24.5 | 99 | 127 | 56 |
Downloadable documents
| Name | Type | Size | |
|---|---|---|---|
| Technical sheet - Advance - F/F/F "y" type valve, red flat handles - Ref : 256 | 0.9 Mo | Download |
Technical sheet - Advance - F/F/F "y" type valve, red flat handles - Ref : 256
0.9 Mo pdf
